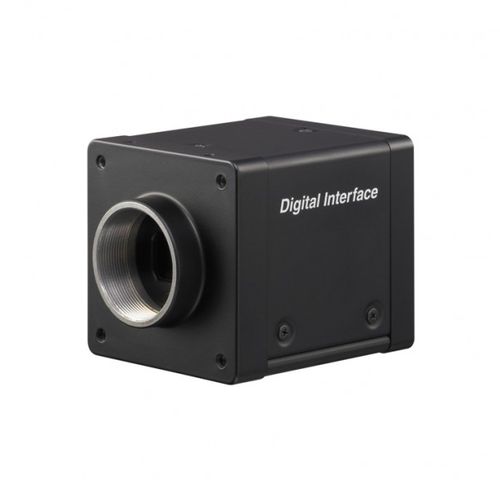

Machine vision camera XCG-H280CR

full-colorCCDGigE

Sony is expanding its popular XCG GigE camera series with the introduction of a new high-quality colour camera. The new XCG-H280CR incorporates a 2/3-type EXview HAD CCD II™ colour sensor which provides great sensitivity with a full-HD high frame rate imagetransfer capability with 8-, 10-, or 12- bit video data output. In addition to inheriting some of the unique features of Sony’s XCD Series, such as Bulk Trigger and Sequential Trigger modes, the XCG-H280CR supports useful features for ITS (Intelligent Transportation System) applications such as Chunk Data and Auto Exposure. The XCG-H280CR incorporates the GigE Vision® interface standard based on Gigabit Ethernet technology. In response to growing demand for large-scale systems, this interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and the availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. By utilizing the features and benefits of the GigE Vision, the XCG-H280CR camera is ideally suited to the demanding requirements of ITS and machine-vision applications.
