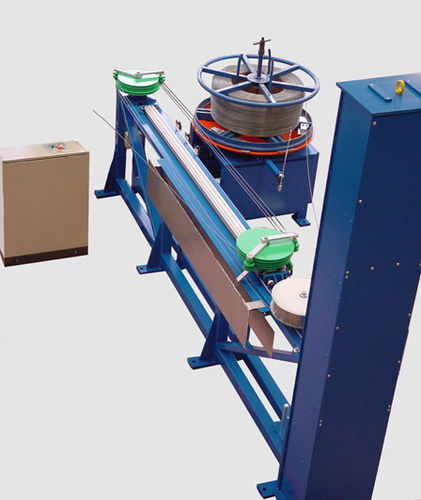

Motorized decoiler

for steel wire

Technical specificatons Loading capacity 2000 kg Table-ø 1400 mm Coil inner-ø 350 - 1000 mm Coil height max. 1200 mm Wire-ø 1 - 10 mm Speed range 2 - 25 rpm Technical equipment - Sturdy construction, easy transportation by fork lift - Modern drive technique with gear incl. integrated safety gear, guarantees constant and harmonical operation - Loop control with robust radial pivot arm for continuous material feed into the processing unit - The coil limiting cross is slidable on the central shaft - The central shaft, as well as the 4 clamping bolts are bolted into the coiltable and can be removed or fitted headstocks. Options - Table-ø 1400 - 1800 mm - Coil height 500 – 1500 mm - Speed range 5 – 50 U/min - Loop control according to the following list - Unmotorized design with friction brake
