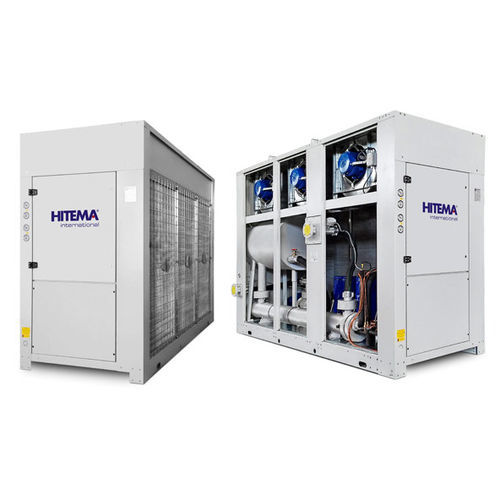

Air chiller CSE

liquidwateroutdoor

The CSE ice water units are designed for an installation with sheathing of hot air extraction from the condenser. Water chiller with single-unit air condensation with centrifugal fan. Delivered ready for on-site installation. Frame: With electro-welded extra-thick steel tubes Panels: Aluminium Compressor: Scroll type Evaporator: Tank immersion type (models CSE 30 to CSE 100) Multi-tubular type (models CSE 130 to CSE 370) Air condenser: Battery of copper tubes and aluminium fins Ventilator: Centrifugal type with pressure available at chiller outlet. Outdoor condenser battery Refrigeration circuit components: Thermostatic pressure-reducing valve Dehydrating filter Liquid indicator Liquid solenoid valve High-pressure / low-pressure safety switch High-pressure manometers & Low pressure manometers Complete hydraulic circuit: Pressurised buffer volume Pressure-relief valve for pressurised circuit Automatic air vent valve Centrifugal pump Automatic by-pass Flow controller for evaporator protection Water manometer Regulation: Basic electronic regulator with digital display (according to model and optional extra) Microprocessor with digital display (according to model and optional extra)
