Air recirculation chiller SMC waterindustrialcompact
Add to favorites
Compare this product
Characteristics
- Material
- water, air
- Applications
- industrial
- Other characteristics
- compact, stainless steel
- Power
Min.: 625 W
(2,132.59 BTU/h)Max.: 775 W
(2,644.41 BTU/h)- Maximum temperature
Min.: 2 °C
(36 °F)Max.: 12 °C
(54 °F)- Flow rate
Min.: 300 l/h
(79.252 us gal/h)Max.: 400 l/h
(105.669 us gal/h)
Description

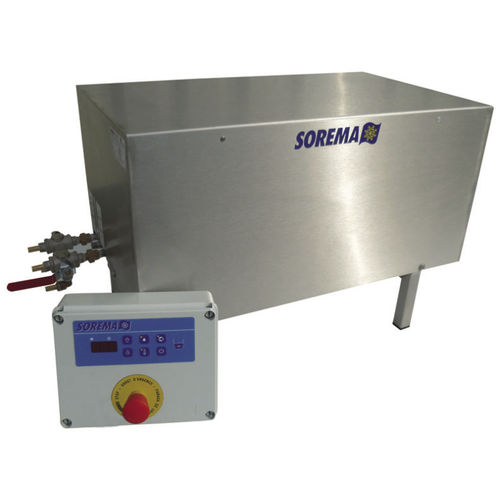

Stainless steel body industrial water chiller, with atmospheric pressure tank, without refrigeration unit, with air/water exchanger. Ideal for chilling a water loop using ambient air. Designed for recycled-water chilling of packaging machines of sealing-thermoforming type, located in a refrigerated environment.
Body and frame on feet made from stainless steel.
Stainless steel buffer tank (open) with return loop and lid.
Enables water elimination from machines using an air extractor.
Automatic filling by float valve.
Level safety: a float contact detects insufficient water in the tank.
Ventilated battery type water/air exchanger.
Water distribution pump
Option:
Optional lost water compensation valves
Optional electrical cabinet
Hydraulic connections: 12-17 (3/8’’)
Empty weight: 40 kg – 53 k
