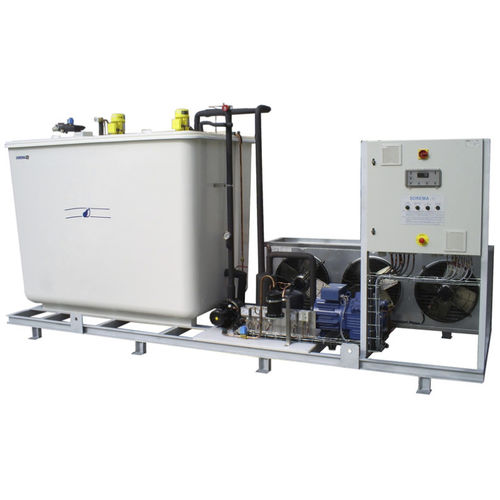

Water recirculation chiller AGD seriesglycol waterfor the food industryfor the baking industry
Add to favorites
Compare this product
Characteristics
- Material
- water, glycol water
- Applications
- industrial, for the food industry, for the baking industry
- Other characteristics
- stainless steel
- Power
Max.: 37 kW
Min.: 16 kW
- Maximum temperature
1 °C, 5 °C, 15 °C, 20 °C
(34 °F, 41 °F, 59 °F, 68 °F)- Flow rate
Max.: 4,000 l/h
(1,056.688 us gal/h)Min.: 750 l/h
(198.129 us gal/h)
Description
• Feedwater output up to 0.5°C
• Integrated water circulation pump
• Stainless steel harrow exchanger
• Ice accumulation
• Large-capacity insulated water tank
• Operational management PLC
• Water level management
• Customisation available
• Food-grade materials and water
• Total drainage
* Clearance height required: + 500 mm
These chillers have been developed for industrial capacities ranging from 750 to 2000 litres.
They are complemented by water dispensing options with cold water / hot water mixing (dispenser models DMT-MA and DMT-PROG).
Tank volume: 2800 L
Empty weight: 1400 to 2300 kg (from 4200 to 5100 kg in operation)
Supply voltage: 400V-3ph-50Hz
Option:
Remote refrigeration unit
Glycol water version
Tropical version
Other voltage
