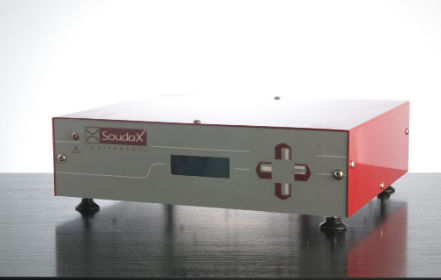

Micro-welding generator controller CCGAC

Controller for AC generator The CCGAC is a universal control unit for all previous-model Soudax AC generators. This control unit may be used to replace an old controller (MS, CMS, INFAX, THERELCO). APPLICATION' FIELDS - Electrical - Household devices - Energy DESIGNATION 30 programs. Programmed via screen/keyboard. 10 welding steps (docking, 6 welding steps, forging). Single, sequencer*,repeated* and seam* modes. Regulated variable intensity*. Intensity monitoring. Solenoid valve control. Force control (proportional valve or electromagnetic system). Remote screen/keyboard (optional). Unit ready for connection to a PLC via a 25-pin sub-D connector (program call, machine ready, OK/bad, etc.). *To enable the intensity regulation function, the transformer unit must be returned to the workshop (optional). FEATURES Name CCGAC Input voltage 230 V (powered by Soudax transformers) Input frequency 50-60 Hz Overall dimensions : length x width x height (mm) 375 × 320 × 118 Weight (kg) 7
