Impeller pump SOC for chemicalswith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for chemicals
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, chemical, refinery
- Applications
- discharge, suction
- Other characteristics
- suction, standard, single-stage, flange, axial, radial, heating
- Flow
2,000 m³/h
(70,629.33344 ft³/h)- Pressure
2.5 MPa
- Head
160 m
(524'11" )- Fluid temperature
Max.: 200 °C
(392 °F)Min.: -80 °C
(-112 °F)
Description

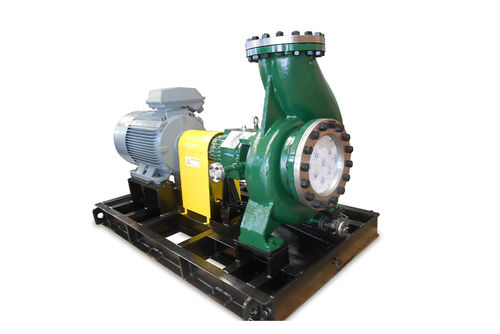

Single-stage radial impeller, horizontal, radially split volute, foot mounted. Axial suction, radial discharge, suction and discharge flange pressure rating is the same. Dimensions and performance meet and exceed ISO2858 requirements. The design standard is ISO5199/ASME873.1M. Can be configured with non-clogging or swirl impeller, safe and high efficiency.
◉ Application:
Clean or polluted, low or high temperature, chemically neutral or corrosive liquids, petrochemical, chemical industry, coal chemical, refinery, pulp and paper, district heating, flue gas desulfurization and general industrial applications.
