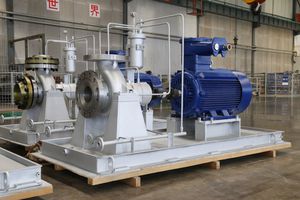

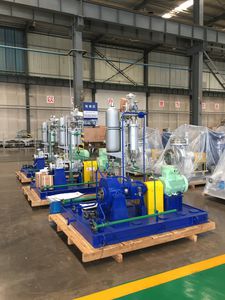

Impeller pump SOTA waterairwith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water, air
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, chemical, refinery
- Applications
- discharge, cooling
- Other characteristics
- suction, mechanical, standard, axial, radial, seal
- Flow
Min.: 0.4 m³/h
(14.12587 ft³/h)Max.: 12 m³/h
(423.776 ft³/h)- Pressure
2.5 MPa
- Head
Min.: 15 m
(49'02" )Max.: 130 m
(426'06" )- Fluid temperature
Min.: -40 °C
(-40 °F)Max.: 450 °C
(842 °F)
Description
Single stage, single suction, closed radial impeller, radially split volute, centerline mounted. Axial suction, radial discharge. The shaft seal and auxiliary system pipeline configuration adopts API682 standard mechanical seal and flushing scheme. Various cooling methods such as natural cooling, air cooling and water cooling can be configured according to working conditions.
◉ Application:
Clean or slightly polluted, low temperature or high temperature, chemically neutral or corrosive liquids; petrochemical, chemical industry, coal chemical industry, refinery and other light stations and general industrial applications.
