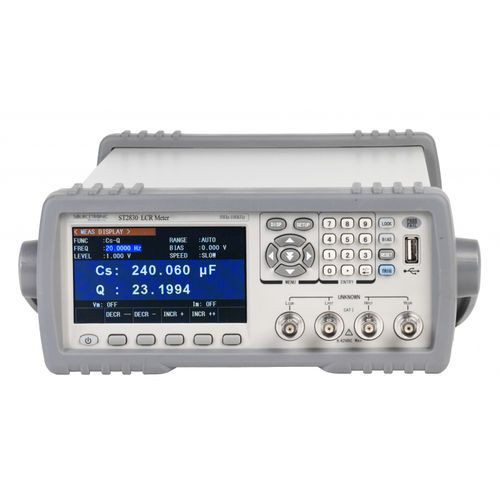

Benchtop LCR meter ST2830 Series

With the compact LCR meter ST2830 and ST2832 you can measure capacitance values, inductance values and ohmic resistances. This allows the electrical properties of coils, capacitors and resistors to be determined quickly and accurately. The measuring instruments are characterised by a high accuracy of 0.05% and are equipped with a 4.3" TFT LCD colour display. Together with the clearly designed front panel, the operation and reading of the determined measured values are very comfortable. Depending on the type of LCR meter, it supports different frequency ranges for measurement. The ST2830 is suitable for the frequency range from 50Hz to 100kHz and the ST2832 from 20Hz to 200kHz. Thanks to a maximum measuring speed of 13 milliseconds, the measurement results are available quickly. Extensive comparison functions with a variety of settings for counting and sorting make it easier to work with the devices and measurement objects. The LCR meters prove their strength in the variety of available interfaces for connection with other devices and for measurement automation. All measuring instruments have RS232, RS485, USB, HANDLER and GPIB interfaces. This enables the control of the units via a PC or via PLC and easy integration into test environments. Data can be saved or updates carried out via a directly connectable USB stick. The housing of the LCR meter is very robust and can cope with the tough requirements in production, laboratories, workshops or teaching facilities. The scope of delivery includes measuring equipment such as a short-circuit plate, terminal test clips, terminal measuring adapter and mains cable.
