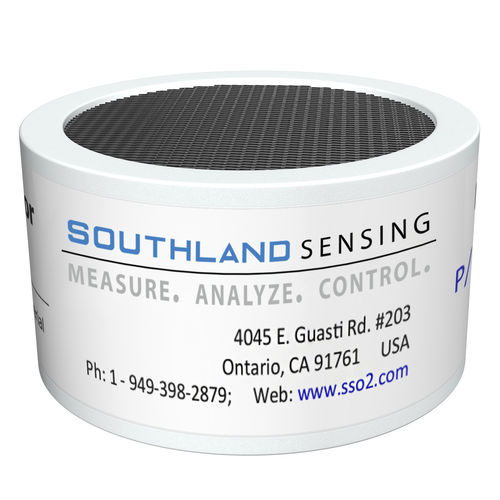

Electrochemical oxygen sensor PO2-2x

percent levelprocess

The PO2-2x Percent Oxygen Sensor provide’s high levels of accuracy, reliability and linearity throughout it’s measurement range’s. The oxygen sensor is based on the galvanic electrochemical fuel cell principal and is manufactured in house under a strict quality procedure. The sensors are self contained and minimal maintenance is required – no need to clean electrodes or add electrolyte. The precision sensors offer excellent performance, accuracy and stability while maximizing the expected life. The sensor is capable of measuring oxygen from 1000 parts-per-million up to 25.0%. The PO2-2x uses our acetic acid electrolyte. This sensor is designed for optimal performance in acid gas applications such as CO2 and Natural Gas. These sensors are limited on shelf life, we do not recommend storing for over 3 months. The output and dimensions of the PO2-2x is designed as a drop in replacement for competitive analyzers. Simply remove the competitive sensor and replace with an SSO2 sensor. Varying performance advantages to the SSO2 sensors can be attributed to minor modifications in dimensions, connections, and packaging. However, the principle of operation and the basic components remain the same.
