Oxygen analyzer OMD-740

monitoringpurityportable

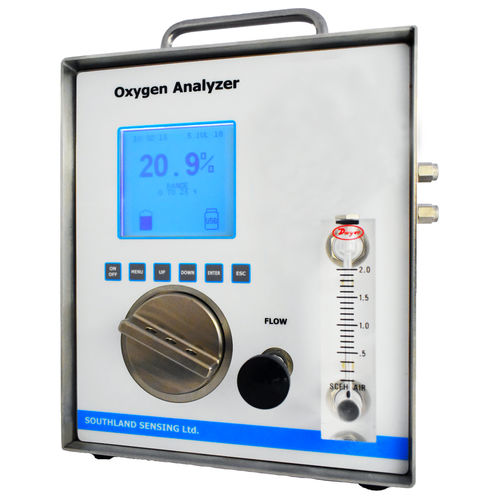

The OMD-740 oxygen analyzer combines a rugged portable design with SSO2’s precision oxygen sensors. The analyzer also has built in temperature and barometric pressure compensation, the result is a highly reliable and cost effective design with easy-to-use interface. The analyzer comes standard with a 0 – 100% full scale range with a resolution of 0.01%. The analyzer can also be configured by the end user in the field for suppressed ranges of 50 – 100%, 80 – 100% and 90 – 100%. A removable USB flash drive for data logging via .CSV (Excel) file format. With an 8GB USB Flash Drive, you can data log for 1 minute intervals for about 50 years before running out of storage. The advanced set of electronic features and flexibility to easily access data allows this analyzer to be unmatched in the market. The display of the analyzer is designed to be used in direct sunlight. No need to bring a shade or other method to see the screen. The oxygen sensor used in the OMD-740 is based on the galvanic electrochemical fuel cell principal and is compensated for both pressure and temperature giving the user added accuracy. All oxygen sensors are manufactured in house by Southland Sensing Ltd. under a strict quality program. The sensors are self-contained and minimal maintenance is required – no need to clean electrodes or add electrolyte.
