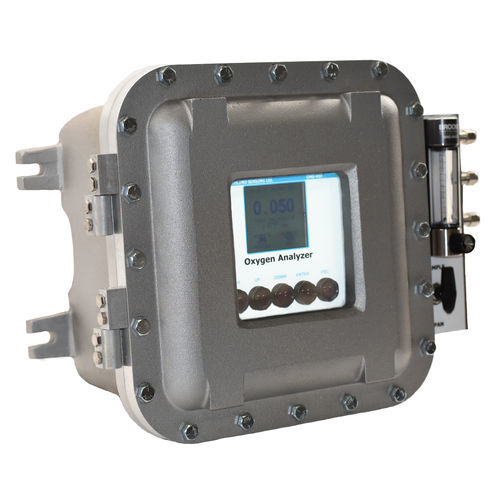

Oxygen analyzer OMD-690

monitoringtraceonline

The OMD-690 is designed to measure trace oxygen in the sub 1 ppm region where an explosion proof design is required. The unit combines an advanced set of electronic features, an innovative touch glass technology with our, industry-leading, precision electrochemical oxygen sensor technology. The result is a highly reliable and cost-effective design with easy-to-use user interface for petrochemical and chemical applications. The analyzer comes with a 0 – 1 PPM full-scale low range with a resolution of 0.001 ppm. The analyzer can also be configured for 0 – 1 ppm, 0 – 10ppm, 0 – 100ppm, 0 – 1000ppm and 0 – 25% in auto range or manual-range mode. The analyzer offers the user 2 different digital communication options, both of which are bi-directional. This comes in the form of MODBUS RS485 ASCII or optional MODBUS RS485 RTU. Alarm functionality comes in the way of 2 fully adjustable form C non-latching relay contacts. These can be configured as NO or NC and can be set as HIGH or LOW with optional delay mode. A power failure alarm is also standard and comes as a form C unlatching relay contact. The oxygen sensor used in the OMD-690 is based on the galvanic electrochemical fuel cell principal. All oxygen sensors are manufactured in house by Southland Sensing Ltd. under a strict quality program. The standard cell (TO2-133) is unaffected by other background gases such as H2, He, or Hydrocarbons. The optional acidic cell (TO2-233) works well when acid gases such as CO2 or Natural Gas are present. The sensors are self-contained and minimal maintenance is required – no need to clean electrodes or add electrolyte.
