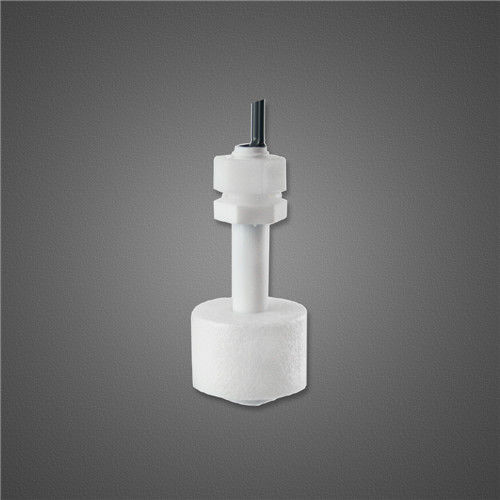

Magnetic float level switch SF113
for liquidsfor tanksanitary

Magnetic float level switch - SF113  - Soway Tech Limited - for liquids / for tank / sanitary
Magnetic float level switch - SF113  - Soway Tech Limited - for liquids / for tank / sanitary
Magnetic float level switch - SF113  - Soway Tech Limited - for liquids / for tank / sanitary - image - 2
Magnetic float level switch - SF113  - Soway Tech Limited - for liquids / for tank / sanitary - image - 3
Magnetic float level switch - SF113  - Soway Tech Limited - for liquids / for tank / sanitary - image - 4
Magnetic float level switch - SF113  - Soway Tech Limited - for liquids / for tank / sanitary - image - 5
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Medium
for liquids
Applications
for tank, sanitary, for home appliances
Material
plastic
Mounting
threaded, vertical
Other characteristics
reed switch, miniature
Process temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

Magnetic float-level switch principle is the float which link to rod equipped with a constant magnetic field, because of the liquid level rise or fall, make the float internal generated magnetic field , thus triggered the reed switch which inner the rod working. Widely used in liquid level measurement, liquid level alarm and level security control field. Features: No standby power requirement Customer can defined activated range and connection enclosure material: engineering plastic High stability, high reliability, high consistency Applications: - Water cooler, coffee machine, water dispenser, humidifier, etc - Home appliance level detection - Level control, level measurement - Container level detection
