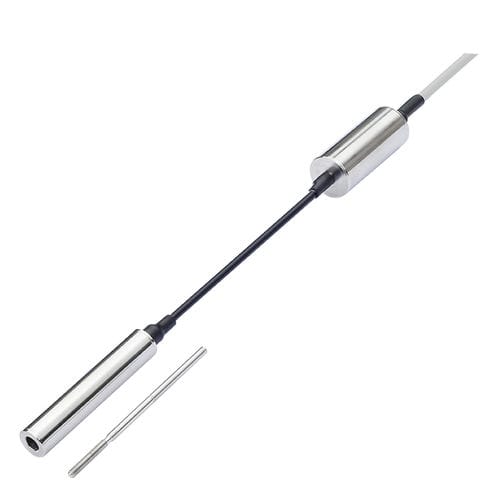

Linear displacement sensor SDVG12Bnon-contactLVDTanalog output
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- LVDT
- Output signal
- analog output, digital, SSI, CANopen
- Protection class
- IP67, IP65
- Applications
- industrial, for process automation, for hydraulic applications, for valves, for automation
- Other characteristics
- high-resolution, precision, rugged, stainless steel
- Measuring range
Min.: 0 mm
(0 in)Max.: 500 mm
(19.69 in)- Linearity
0.1 %, 0.3 %, 0.5 %
- Measuring rate
50 Hz
- Supply voltage
Min.: 9 V
Max.: 28 V
- Ambient temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
The linear variable differential transformer (LVDT) has been widely used in applications such as power turbines, hydraulics, automation, aircraft,satellites, nuclear reat repeatability.
DC-operated LVDTs are rugged hermetically sealed sensors, stainless steel 304 housing.They are designed for environments containing moisture,dirt,etc.They are designed to operate in conjunction with computer-based data processors(standard) or PLCs(option).
Features:
- SS304 construction, Spring loaded
- DC operated, Built-insignal conditioner
2-wire current output 4-20mA
- Contactless, Long lifespan
Applications:
- Position feedback of machine tools
- Hydraulic cylinder position sensing
- Bridge deflection&Concrete crack monitoring
- Valve position sensing
- The subway tunnel crack monitoring
