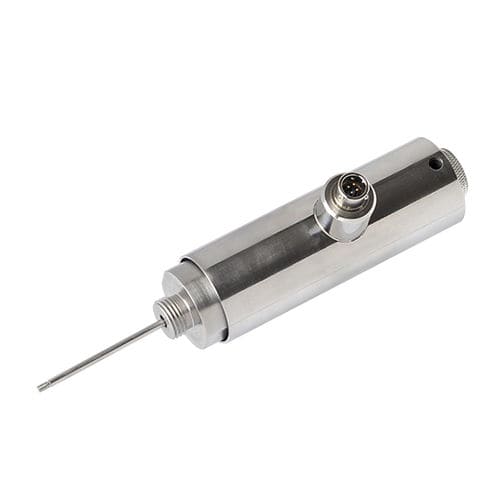

Linear displacement sensor SDVG36-40CLVDTanalogfor valves
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- LVDT
- Output signal
- analog
- Applications
- for hydraulic applications, for valves
- Other characteristics
- high-precision, pressure-resistant, high-sensitivity
- Measuring range
Min.: 2 mm
(0.08 in)Max.: 10 mm
(0.39 in)- Linearity
1 %
- Measuring rate
50 Hz
- Supply voltage
Min.: 9 V
Max.: 28 V
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 75 °C
(167 °F)
Description
SDVG36-40C series, which is based on the principle of LVDT，is highly precise and sensitive. Special sealing pefromed in SDVG36-40C make it operate up to 5076pisg. SDVG36-40C has been widely used in hydraulic control, meanwhile become a necessary sensing element of hydraulic control system.
Features:
- Pressure resistant up to 350bar (5076psig)
- 2-wire output of 4-20mA, 3-wire voltage signal
- Mechanical zeroing( Within 2mm)
Applicaitions:
- Servo Valve Displacement Sensing
- Directional Control Valves
- Propotional Valves
- Servo Lever
