Linear displacement sensor SDVG20C
LVDTanalogpressure-resistant

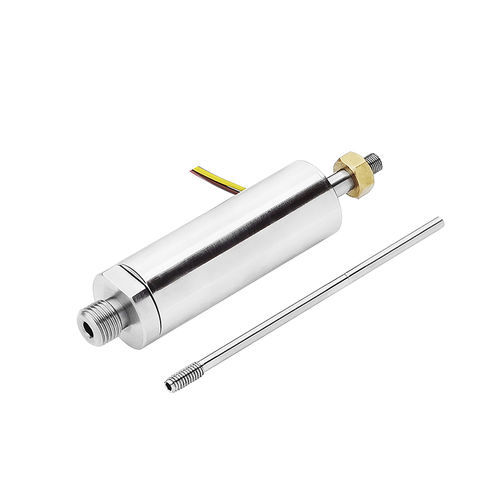

Linear displacement sensor - SDVG20C - Soway Tech Limited - LVDT / analog / pressure-resistant
Linear displacement sensor - SDVG20C - Soway Tech Limited - LVDT / analog / pressure-resistant
Linear displacement sensor - SDVG20C - Soway Tech Limited - LVDT / analog / pressure-resistant - image - 2
Linear displacement sensor - SDVG20C - Soway Tech Limited - LVDT / analog / pressure-resistant - image - 3
Linear displacement sensor - SDVG20C - Soway Tech Limited - LVDT / analog / pressure-resistant - image - 4
Linear displacement sensor - SDVG20C - Soway Tech Limited - LVDT / analog / pressure-resistant - image - 5
Linear displacement sensor - SDVG20C - Soway Tech Limited - LVDT / analog / pressure-resistant - image - 6
Add to favorites
Compare this product


Characteristics

Type
linear
Technology
LVDT
Output signal
analog
Other characteristics
compact, high-precision, pressure-resistant, high-sensitivity
Measuring range

Min.: 2.5 mm
(0.1 in)

Max.: 35 mm
(1.38 in)

Linearity

Min.: 0 %

Max.: 1 %

Measuring rate

Min.: 50 Hz

Max.: 600 Hz

Power consumption

Min.: 0 W
(0 hp)

Max.: 2 W
(0 hp)

Supply voltage

Min.: 9 V

Max.: 28 V

Ambient temperature

Min.: -25 °C
(-13 °F)

Max.: 85 °C
(185 °F)

Description

SDVG20C series, which is based on the principle of LVDT, is highly precise,sensitive. Special sealing pefromed in SDVG36-8C make it operate up to 5076psig. It has been widely used in hydraulic control, meanwhile become a necessary sensing element of the hydraulic control system. Features: - Pressure resistant up to 350bar (5076psig) - 2-wire output of 4-20mA, 3-wire voltage signal - 4-wire PNP/NPN - Compact design Applications: - Proportional valve - Servo Valve Displacement Sensing - Directional control valves - Servo lever
