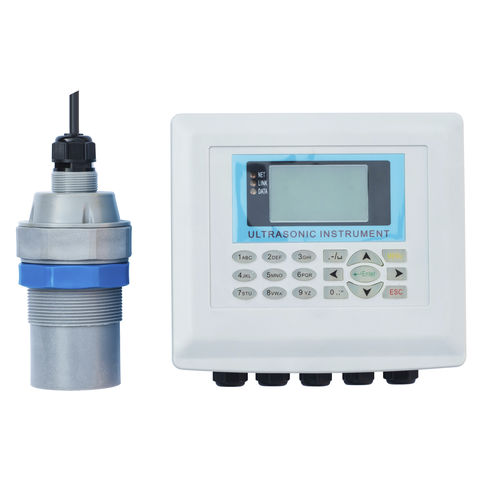

Ultrasonic level sensor SFU60R

liquidanalogRS-485

Ultrasonic liquid level meter sends out ultrasonic pulse by sensor (transducer). The sound wave is received by the same sensor or an ultrasonic receiver after it is reflected by the liquid surface and is converted into electrical signal through a piezoelectric crystal. The transmission time of the sound wave is proportional to the distance from the sound wave to the surface of the object, the distance from the sensor to the surface of the measured liquid (solid) is calculated by the time between the transmission and reception of the sound wave. Features: - It has strong anti-interference ability and can be applied to the liquid level measurement in harsh environment - Built-in temperature sensor can realize real-time temperature automatic compensation function - Multiple output types can meet different industrial field interface requirements - Minimum blind area is 6 mm, which has the leading position in the field of measurement in China Applications: - Liquid level inspection of tap water and sewage treatment - Liquid level inspection of food processing - Liquid level inspection of collection well and biochemical pool - Liquid level measurement of various slurry Our Services 1. MOQ: One set.; 2. OEM Service: We can produce as client's demand and environment condition; 3. Quality: We have standardised production lines, with extremely strict quality control system; 4. Delivery Option: We contracted forwarder and flexible out sourcing express shipping method avaiable; 5. Reasonable competitive price;
