Chain conveyor

wedgehorizontalinclined

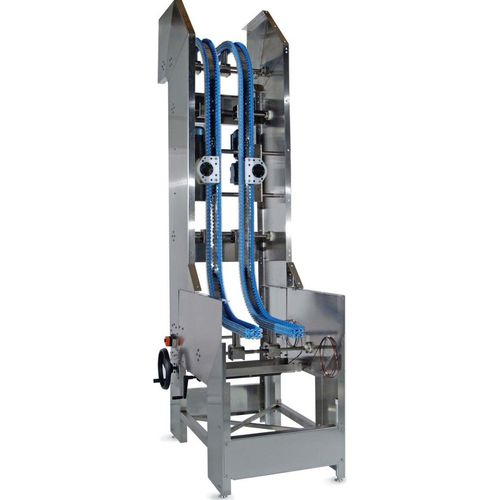

Wedge conveyors provide vertical movement in a compact, all-mechanical design for the ultimate reliability. Forget maintenance problems with configurable wedge conveyors. You can see the wedge in motion, but you probably won’t hear it. The almost-silent unit is designed with all-mechanical movement, grabbing products on the sides and sending them on their way. Don’t have much floor space? It’s not a concern for the compact wedge units. Plus, they can be configured to handle almost any product size or weight. • Max Speed – 180/fpm (55/mpm) • Minimum Infeed Elevation – 26″ • Overall Width: • 39.1″ – Positionable Units • 48.4″ – 0 – 12″ Adjustable Units • 60.4″ – 0 – 24″ Adjustable Units Features • Available in a wide variety of chain types and widths to accommodate a large array of products • Variable speed ranges • Elevation accommodation up to 30 feet or more • Available in powder-coated or stainless construction • Choice of standard "positionable" or fully-adjustable versions • No computers, logic or software components needed
