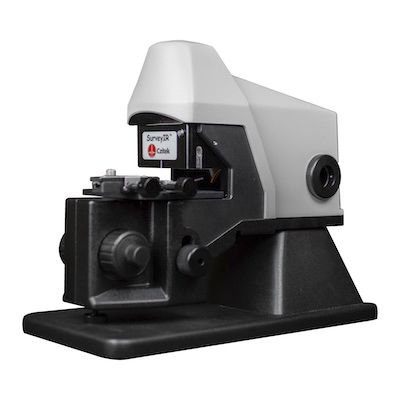

Infrared microscope SurveyIR

for analysiscompactergonomic

The SurveyIR™ is a new FTIR Micro-spectroscopy accessory designed to deliver the ultimate user experience for a broad range of microanalysis techniques. The unique ergonomic design allows seamless interaction between operator and instrument. Key Features • Sampling modes There are three sampling modes for the SurveyIR, transmission, reflection, and ATR (diamond and Ge available). • Illumination modes There are three illumination modes for the SurveyIR, transmission, reflection, and oblique. • High resolution visual images 5 mega pixel CMOS colour video camera, 2592 x 1944 maximum resolution The SurveyIRTM’s compact configuration and alignment free optical design facilitates simple mounting in the FTIR spectrometer sample compartment. Research grade visual images are produced via a high resolution color video camera. High depth of field viewing optics facilitate quick specimen location and alignment in reflection, transmission and Attenuated Total Reflection (ATR) viewing modes. • Onboard FTIR spectrometer detector • 2X optical magnification yields .7μm/pixel at sample plane • Variable IR mask - 2000μm, 250μm, 200μm, 160μm, 100μm or, 60μm fixed diameter • eSpotTM software control of visual illumination modes, visible illumination intensity, ATR contact alert, IR mask selection, and IR transmission/reflection modes • Manual coarse/fine z stage focus adjust, 1⁄3" minimum working distance 1⁄2" maximum travel • Manual x, y stage fits 1" x 3" standard microscope slides • Accommodates commercially available transmission cells including diamond compression cells
