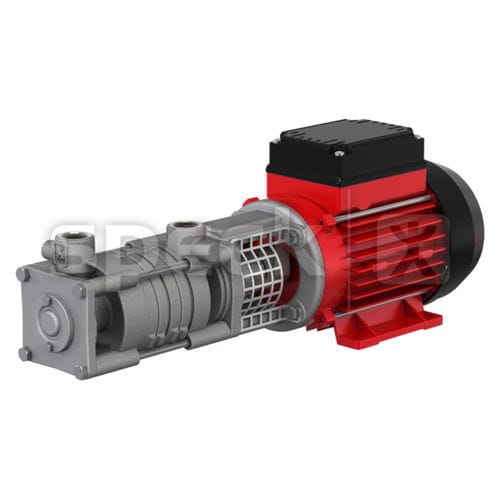

Regenerative turbine pump PY-2271/2/3waterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- regenerative turbine
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Other characteristics
- compact, suction, mechanical, multi-stage, close-coupled
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 16 l/min
(4.22675 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 120 m
(393'08" )- Power
0.25 kW, 0.55 kW, 1.1 kW
(0.34 hp, 0.75 hp, 1.5 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 140 °C
(284 °F)- Length
374 mm, 465 mm
(15 in, 18 in)- Width
125 mm, 153 mm
(4.92 in, 6.02 in)- Height
184 mm, 231 mm
(7.24 in, 9.09 in)- Weight
3.5 kg, 3.7 kg, 4.4 kg
(7.72 lb, 8.16 lb, 9.7 lb)
Description
Close-coupled pumps with mechanical seal
With bracket
Self-priming
Multi-stage
Media
Material design
Brass
Stainless steel
Suction connection
G 1/2
Pressure connection
G 1/2
Sealing
Mechanical seal
Applications
Advantages
Suitable for the delivery of gas shares
Steep characteristic curve
High pressures with compact design
