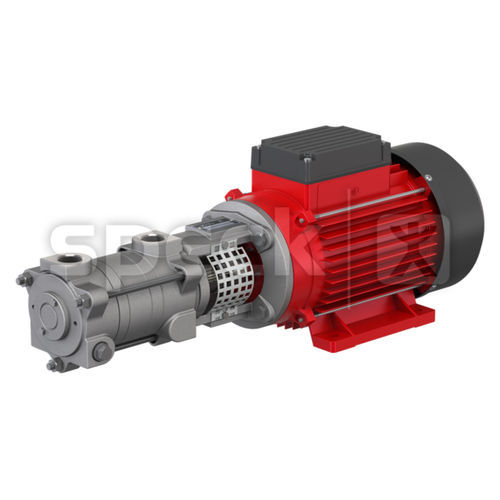

Side-channel pump GY-028 series
waterwith electric motorself-priming

Side-channel pump - GY-028 series - SPECK-PUMPEN - water / with electric motor / self-priming
Side-channel pump - GY-028 series - SPECK-PUMPEN - water / with electric motor / self-priming
Add to favorites
Compare this product


Characteristics

Technology
side-channel
Fluid
water
Operation
with electric motor
Priming
self-priming
Mobility
stationary
Domain
industrial
Applications
recovery, boiler
Other characteristics
compact, suction, mechanical
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 45 m³/h
(1,589.16 ft³/h)

Head

Min.: 0 m
(0'00" )

Max.: 240 m
(787'04" )

Power

0.55 kW, 1.1 kW, 1.5 kW
(0.75 hp, 1.5 hp, 2.04 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 120 °C
(248 °F)

Length

395 mm, 467 mm
(16 in, 18 in)

Width

138 mm, 170 mm
(5.43 in, 6.69 in)

Height

190 mm, 238 mm
(7.48 in, 9.37 in)

Weight

4 kg, 5.4 kg, 8.1 kg
(8.82 lb, 11.9 lb, 17.86 lb)

Description

Closed coupled version With elastic coupling Suitable for the delivery of gas shares Self priming Material design Stainless steel Cast iron Suction connection G 3/4 Pressure connection G 3/4 Sealing Mechanical seal Applications Power engineering Delivery of hot water in boiler sytems Recovery of condensates (water) Advantages Suitable for the delivery of gas shares Steep characteristic curve High pressures with compact design
