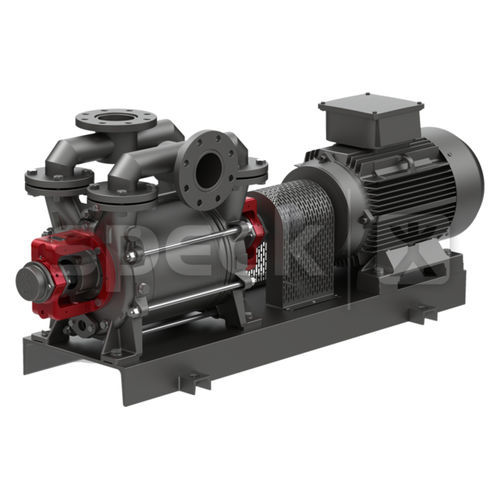

Liquid ring pump VU0600

waterwith electric motorself-priming

Single-stage pumps in base plate version with B3 standard motors Sound pressure level 66 - 76 db(A) Media dry and humidified gases Material design Stainless steel Cast iron Copper alloy Suction connection G 1 1/4 – DN 125 Pressure connection G 1 1/4 – DN 125 Sealing Mechanical seal Dimensions (WHD) Applications Food industry / Pharmaceutical industry Degasification of toothpaste, cremes, lotions, marzipan etc. Degasification (oxygen deprivation) of meat and sausage products Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam Vacuum cooking of fruits, vegetables, pulps and mush Thickening and crystallisation of sugar under vacuum Removal of internal organs in the fish and poultry processing industry Chemical industry Distillation / separation of liquids Advantages Operating point > 200 mbar Tried-and-tested robust design Developed/designed for continuous operation Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc. Requirement-related design due to the use of diverse materials
