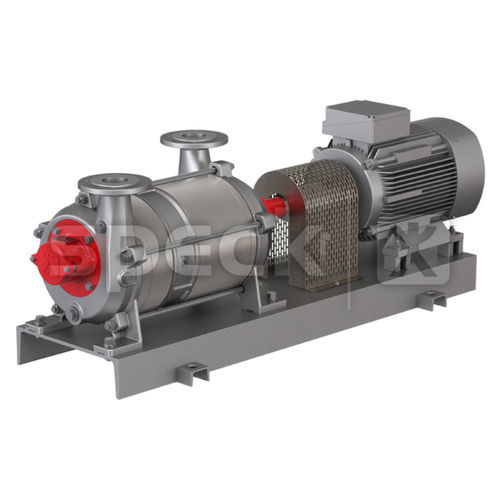

Liquid ring pump VHC0500

polymerwith electric motorself-priming

Two-stage pumps in base plate version with B3 standard Sound pressure level 66 - 79 db(A) Media dry and humidified gases Material design Stainless steel Cast iron Copper alloy Suction connection DN 40 – DN 100 Pressure connection DN 40 – DN 100 Sealing Separating can / Magnetic drive Mechanical seal Packing gland Dimensions (WHD) Applications Medical engineering Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization) Plastics industry Extruder degasification Food industry / Pharmaceutical industry Degasification of toothpaste, cremes, lotions, marzipan etc. Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam Vacuum cooking of fruits, vegetables, pulps and mush Thickening and crystallisation of sugar under vacuum Chemical industry Distillation / separation of liquids Recovery of condensates (solvents) Drying of bulk material such as washing powder, fertilisers, salts, granular polymer, etc. Advantages Developed/designed for continuous operation Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc. Requirement-related design due to the use of diverse materials
