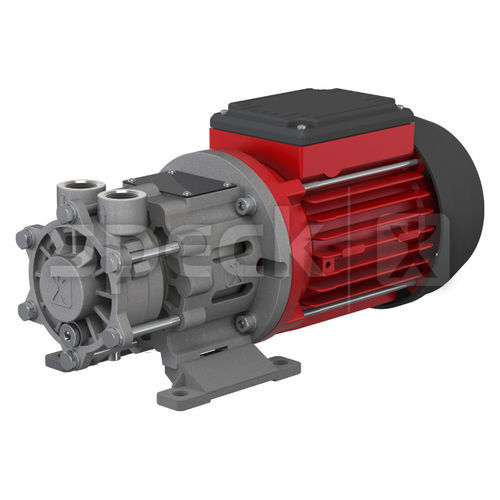

Regenerative turbine pump EY-2251-MKwaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- regenerative turbine
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- cooling, for control, reverse
- Protection level
- maintenance-free
- Other characteristics
- compact, suction, close-coupled
- Flow
Max.: 40 l/min
(10.56688 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 50 m
(164'00" )Min.: 0 m
(0'00" )- Power
0.5 kW, 0.55 kW
(0.68 hp, 0.75 hp)- Fluid temperature
Max.: 140 °C
(284 °F)Min.: 0 °C
(32 °F)- Length
308 mm
(12 in)- Width
120 mm
(4.72 in)- Height
163 mm
(6.42 in)- Weight
8.1 kg
(17.86 lb)
Description
Close-coupled pumps with magnetic coupling
Material design
Stainless steel
Suction connection
G 1/2
Pressure connection
G 1/2
Sealing
Separating can / Magnetic drive
Applications
Temperature control / Industrial cooling
Tempering of tool moulds
Cooling of machines, systems and production processes
Cooling in the semiconductor industry
Advantages
Suitable for the delivery of gas shares
Steep characteristic curve
High pressures with compact design
Leakage-free and maintenance-free due to magnetic coupling
Possible reverse operation
Catalogs
Complete product range
76 Pages
