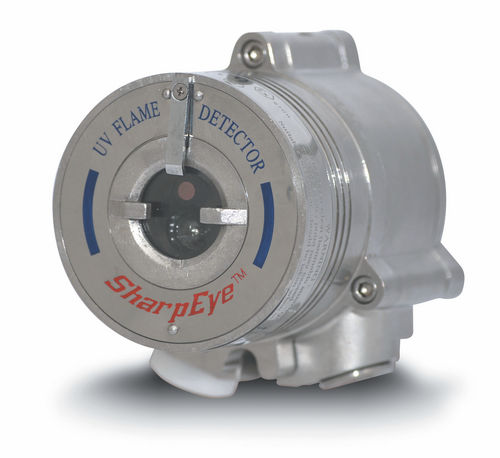

UV flame detector SharpEye U-UB

hydrogen flame

The new 40/40 UV Flame Detector detects hydrocarbon-based fuel and gas fires, invisible hydrogen flames, and fires from hydrides, ammonia, silane and other organics. The 40/40U-UB is the most durable and weather resistant UV flame detector currently on the market. Its new features include a heated window to eliminate condensation and icing; HART capabilities, for digital communications; lower power requirements; and a compact, lighter design. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508. The model 40/40UB includes a Built-in-Test (BIT) feature, whereas the 40/40U model does not. Note: This type of detector should not be exposed to UV radiation sources such as welding, sparks, and electric arcs as it will cause false alarms. UV spectrum design Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation (in 40/40UB only) Heated Window - for operation in harsh weather conditions (snow, ice, condensation) Multiple output options for maximum flexibility and compatibility Relays (3) for Alarm, Fault and Auxiliary 0-20mA (stepped) HART Protocol for maintenance and asset management RS-485, Modbus Compatible High Reliability - MTBF - minimum 150,000 hours Approved to Safety Integrity Level 2 (SIL2 - TUV) - Model 40/40UB only 5-Year Warranty User Programmable via HART or RS-485 Hazardous area zones: Zones 1 & 2 with IIC gas group vapors present Zones 21 & 22 with IIIC dust type present Ex approved to: ATEX & IECEx FM/FMC/CSA TR CU (EAC) 3rd party Performance Tested EN54-10 (VdS) FM3260 Reliability IEC61508 - SIL2 (TUV) - model 40/40UB only​​​​​​​​​​​​​​
