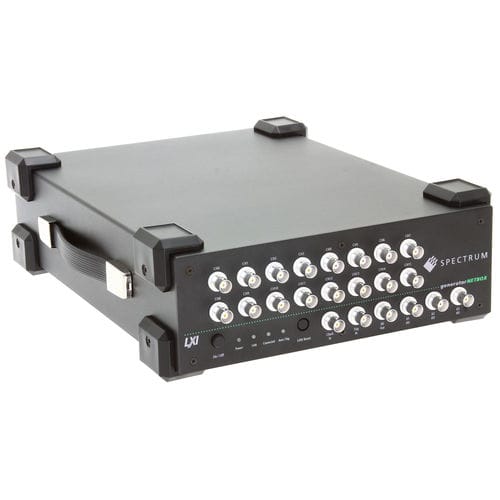

Arbitrary waveform generator DN2.65x series

functionsignal4-channel

ARBITRARY WAVEFORM GENERATOR - LXI/Ethernet - up to 125 MS/s - 16-bit - 16 bit arbitrary waveform generator - Models with 125 MS/s and 40 MS/s - Models with 16 or 8 or 4 channels - Ouput signal bandwidth > 60 MHz - Output level programmable ± 3 V into 50 Ohm or ± 6 V into 1 MOhm - Remote Control for all functions - Modes: Single-Shot, Loop, FIFO, Sequence Replay Mode, Gated, etc. - 6 different models available
