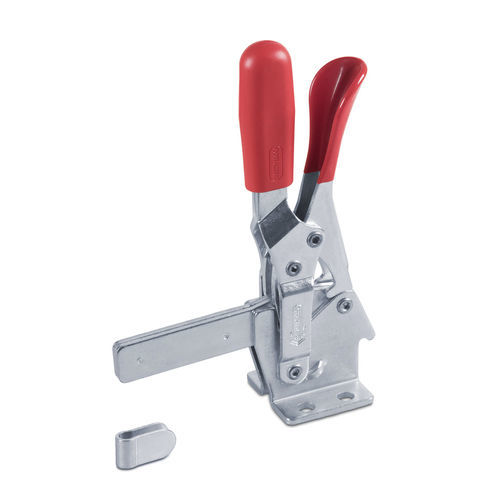

Vertical toggle clamp EL/ELX

with folded basewith anti-realease leverstainless steel

Toggle clamp Form EL Toggle clamps - Vertical series Also available in stainless steel material Material: Galvanized steel (EL) or AISI 304 stainless steel (ELX). Riveted Pivots: Galvanized Steel (EL) or AISI 304 stainless steel (ELX). Supporting Bushes: Hardened and ground galvanized or stainless steel. Handle: Red polyurethane; resistant to oils, greases and other chemical agents. Executions: • EL/ELX: full clamping lever and bolt retainer, included in the supply, to be welded in the desired position and angle. Safety lever: Galvanized steel (EL) or AISI 304 stainless steel (ELX), red PVC coating. Features and applications: The safety lever ensures the perfect anchoring of the tool, even in the open position, preventing any accidental openings caused by vibrations or shocks (see picture 01). In fact, opening the tool requires a mechanical action by the operator to disengage the retaining system. During closing, the clamping lever is guided laterally to ensure greater stability against any transverse stresses. The movement of the levers has been designed to ensure the safety of the operator’s fingers and prevent them from being crushed during the movement of the tool. A special grease is applied to the contact surfaces to reduce friction and make the movement smoother. Accessories: • Spindles . • Safety sensor kit
