Pneumatic toggle clamp LPV

verticalsteelfor heavy loads

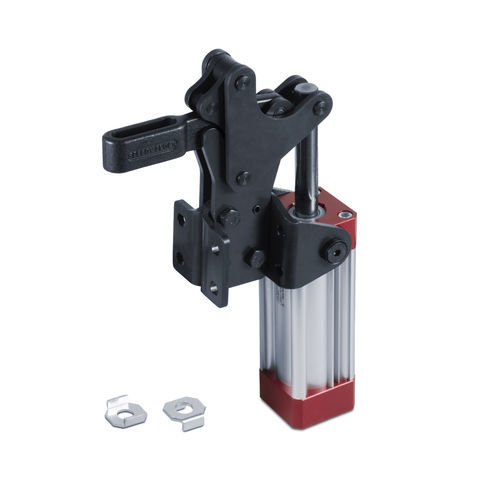

Toggle clamp Form LPV Toggle clamps - Pneumatic series *** New *** Rotation pivots and bushings: Hardened and ground steel. Clamping lever: Hot-molded phosphate steel, eyelet shape for inserting the spindle (to be ordered separately – see Accessories). Pneumatic cylinder: Aluminium, magnetic type, with pneumatic brake in the rear head. Operating pressure: 10 bar. Maximum temperature: 80°C. Features and applications: These tools are generally used in clamping work with medium and heavy loads, on welding masks, carpentry work, moulds and where large clamping forces and strong repetitiveness of movements are required. Features and applications: A filter-lubricator-reducer assembly is recommended for proper cylinder operation. To ensure a prolonged life of the mechanical parts, it is advisable to be equipped with appropriate flow regulators and to calibrate the speed of execution of the movements starting from a low speed and gradually increasing the air flow. The values of the clamping force Fs shown in the table were detected at a pressure of 10 bar. A special grease is placed between the contacting surfaces during assembly. Accessories (to be ordered separately): • Spindles • Safety sensor type AU570
