Pneumatic toggle clamp EP

horizontal actingzinc-coated steel

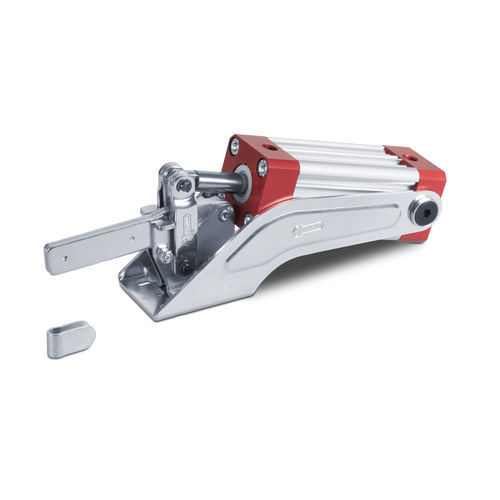

Toggle clamp Form EP Toggle clamps - Pneumatic series ******* New ******* Available in magnetic execution Light pneumatic series This series has been completely redesigned, giving the items a greater operating life. Material Sheet metal and galvanized steel riveted pivots. Hardened and groung steel rotation pivots, running into sockets with similar feature. Pneumatic cylinder All the cylinders of this series are magnetic, with a pneumatic brake inside the back head. Maximum operating pressure 6 bar. Maximum operating temperature 70°C. The electronic switch for detecting the position is AU570 and must be ordered separately. Spindle To be ordered separately Feature and applications A filter-reducer-lubricator group is recommanded for a long and smooth operation of the cylinder, while for a long duration of the mechanical components we recommend using suitable flow regulations and calibrating the speed of the motion desired. The values of the clamping force Fs on the chart are measured at 6 bar pressure air.
