Pneumatic toggle clamp APV

vertical actingzinc-coated steel

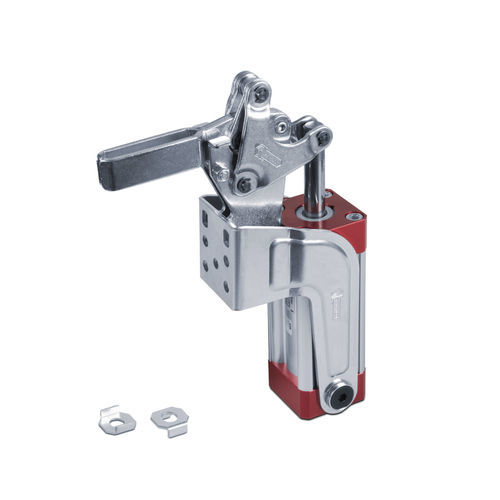

Toggle clamp Form APV Toggle clamps - Pneumatic series *** New *** Available in magnetic execution Base, levers, and riveted pivots: Galvanized steel. Rotation pivots and bushings: Hardened and ground steel. Executions: • A: Open clamping lever with two folded washers, included in the supply. Pneumatic cylinder: Aluminium, magnetic type, with pneumatic brake in the rear head. Operating pressure: 6 bar. Maximum temperature: 70°C. Features and applications: A filter-lubricator-reducer assembly is recommended for proper cylinder operation. To ensure a prolonged life of the mechanical parts, it is advisable to be equipped with appropriate flow regulators and to calibrate the speed of execution of the movements starting from a low speed and gradually increasing the air flow. The values of the clamping force Fs shown in the table were detected at a pressure of 6 bar. A special grease is placed between the contacting surfaces during assembly. Accessories (to be ordered separately): • Spindles • Lever crossbars for APV • Safety sensor type AU570
