Pneumatic toggle clamp EPVS
horizontal actingzinc-coated steel

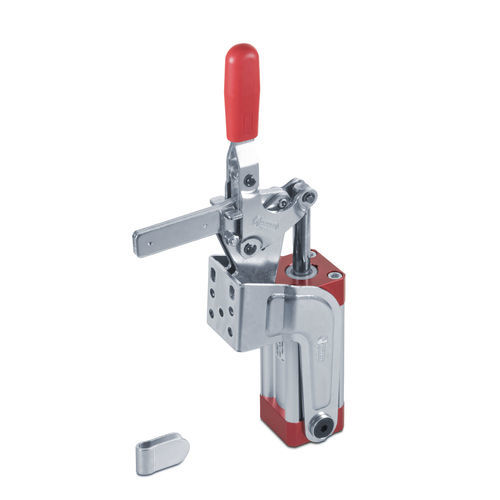

Pneumatic toggle clamp - EPVS - SPEEDY BLOCK - horizontal acting / zinc-coated steel
Pneumatic toggle clamp - EPVS - SPEEDY BLOCK - horizontal acting / zinc-coated steel
Pneumatic toggle clamp - EPVS - SPEEDY BLOCK - horizontal acting / zinc-coated steel - image - 2
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Configuration
horizontal acting
Other characteristics
zinc-coated steel
Clamping force

Min.: 126 daN

Max.: 260 daN

Description

Toggle clamp Form EPVS Toggle clamps - Pneumatic series *** New *** Available in magnetic execution Base, levers, and riveted pivots: Galvanized steel. Rotation pivots and bushings: Hardened and ground steel. Executions: • E: Full clamping lever and bolt retainer, included in the supply, to be welded in the desired position and angle. Pneumatic cylinder: Aluminium, magnetic type, with pneumatic brake in the rear head. Handle: Red polyurethane; resistant to oils, greases and other chemical agents. Operating pressure: 6 bar. Maximum temperature: 70°C. Features and applications: A filter-lubricator-reducer assembly is recommended for proper cylinder operation. To ensure a prolonged life of the mechanical parts, it is advisable to be equipped with appropriate flow regulators and to calibrate the speed of execution of the movements starting from a low speed and gradually increasing the air flow. The values of the clamping force Fs shown in the table were detected at a pressure of 6 bar. A special grease is placed between the contacting surfaces during assembly. Accessories (to be ordered separately): • Spindles • Safety sensor type AU570 sired. The values of the clamping force Fs on the chart are measured at 6 bar pressure air.
