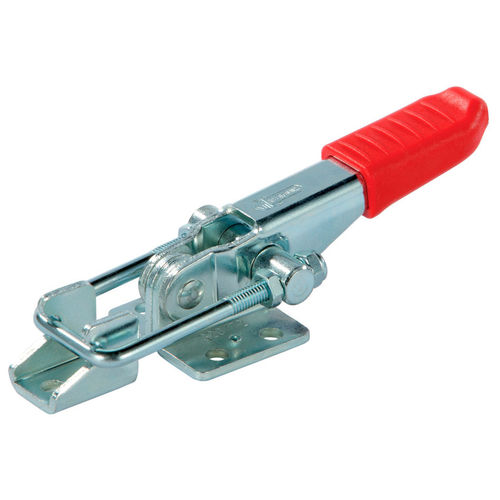

Latch type toggle clamp T2/T2X T20/T20X

stainless steelzinc-coated steelwith folded base

Toggle clamp Form T2 - Form T20 Toggle clamps - Latch series Also available in stainless steel material Base, control lever, riveted pins, hooking bracket: Galvanized steel (T2-T20) or AISI 304 stainless steel (T2X-T20X). Swinging pivot and nuts: Galvanized steel (T2-T20) or AISI 303 stainless steel (T2X-T20X). Handle: Red polyurethane; resistant to oils, greases and other chemical agents. Executions: • T2-T2X: equipped with double threaded tie rod with nuts, swinging pivot and hooking bracket. • T20-T20X: equipped with swinging pivot and hooking bracket. Double tie rod to be ordered separately (see Accessories). Features and applications: These tools are particularly suitable for closing machine covers or doors. The position of the threaded tie rod can be adjusted within a certain range (see dimension “D”) to fit the requirements of use. The support base is parallel to the line of action of the force. In the closed position, the control lever is parallel to the support base. A special grease is placed between the contacting surfaces during assembly. Other available executions: Series with safety lever, heavy series. Accessories: • Tie rods of different sizes
