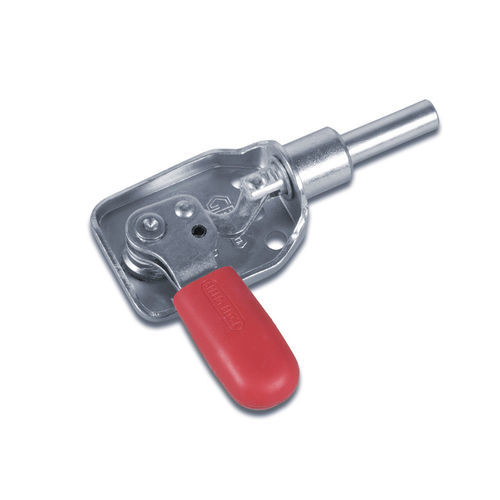

Straight-line toggle clamp ASD

zinc-coated steelpush-pull

Toggle clamp Form ASD Push and Pull Toggle clamps - Straight-line action series Base, control lever, riveted pivots, sliding bushing and push-pull rod: Galvanized steel. Rod with threaded hole for the spindle housing (to be ordered separately - see Accessories). Handle: Red polyurethane; resistant to oils, greases and other chemical agents. Executions: • ASD: - push clamping with anti-clockwise control lever rotation. - pull clamping with clockwise control lever rotation. Features and applications: The structure of the mechanism allows force to be applied at a point very close to the mounting surface and a small vertical footprint. A special grease is applied to the contact surfaces to reduce friction and make the movement smoother. Accessories (to be ordered separately): • Spindles
