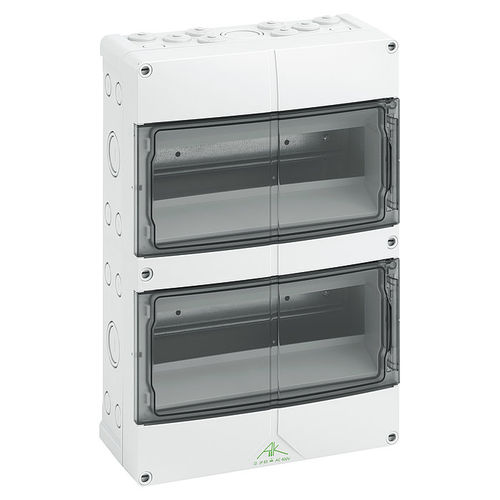

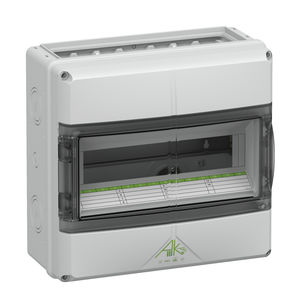

Modular electrical enclosure AKi 03polycarbonateimpact-resistantpower distribution
Add to favorites
Compare this product
Characteristics
- Configuration
- modular
- Material
- polycarbonate
- Protection level
- impact-resistant
- Application
- power distribution
- Other characteristics
- pre-assembled
- Width
100 mm, 125 mm, 200 mm, 250 mm
(3.9 in, 4.9 in, 7.9 in, 9.8 in)- Height
96 mm, 122 mm
(3.8 in, 4.8 in)- Depth
150 mm, 200 mm, 370 mm
(5.91 in, 7.87 in, 14.57 in)
Description
Small-scale distributors, with protection class IP65, 1 Row, 3 available modules, Rated operational voltage: 400V AC, Rated insulation voltage: 1000V AC, 1000V DC, metric knockouts on top and bottom for universal cable insertions with cable glands and/or double membrane seals, elastic entries double membrane seals M20 on top
with PE/N terminal rail, each with 1 clamping point 16 mm² and 3 terminal points 6 mm²
Double-membrane seals: 1x M25, sealing plugs, masking and labelling strips
