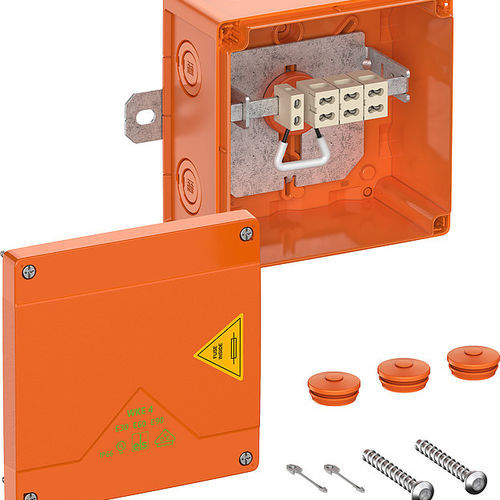

Wall-mounted junction box WKE 4 - 3/3 x 6² 1SB
halogen-freefire-resistantweather-resistant

Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant - image - 2
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant - image - 3
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant - image - 4
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant - image - 5
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant - image - 6
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant - image - 7
Wall-mounted junction box - WKE 4 - 3/3 x 6² 1SB - Spelsberg - halogen-free / fire-resistant / weather-resistant - image - 8
Add to favorites
Compare this product


Characteristics

Mounting
wall-mounted
Protection level
halogen-free, fire-resistant, weather-resistant, IEC, IP66, IP65, IP54
Material
plastic
Applications
for cables, for hazardous areas, for industrial networks
Other characteristics
with knockouts, outdoor, for low-voltage cables, DC
Length / diameter

150 mm
(5.9 in)

Width

150 mm
(5.91 in)

Depth

85 mm
(3.35 in)

Description

Cable junction box, with protection class IP66, Ui=450V AC, certified according to UL-EU (EN 62208), UL-EU (EN 61439-1/-2), Push-out membranes, M20/M25/M32, (2 Rear, 12 Side), External fastening points, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder orange, Connection box, 3-pole, 0.5 - 6 mm², junction box 3-pole 0.5 - 6 mm², fuse in branch 1 x 2A (internal, 1 x WKE BS F2A, 86300101) number of clampable wires per terminal point: 4 x 0.5² / 2 x 0.75² / 3 x 1² / 3 x 1.5² / 1 x 2.5² / 1 x 4² / 1 x 6² Cover securing device, screw anchors, 3 off double membrane seals M25 IP66 sealing area 9 - 16 mm
