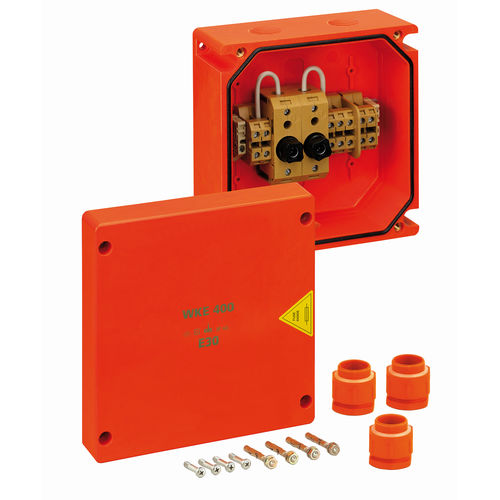

Wall-mounted junction box WKE 300 8 x 6² 2FShalogen-freefire-resistantweather-resistant
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mounted
- Protection level
- halogen-free, fire-resistant, weather-resistant, IP66
- Material
- plastic
- Applications
- for industrial networks
- Other characteristics
- with knockouts, outdoor, for low-voltage cables, DC
- Length / diameter
160 mm
(6.3 in)- Width
160 mm
(6.3 in)- Depth
110 cm
(43.31 in)
Description
Cable junction box, with protection class IP66, Ui=450V AC, certified according to VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)), M25, (3 Side), External fastening points, with E30 electrical functional integrity according to DIN 4102 Part 12, enclosure and terminal block are made from halogen-free special thermosetting plastic
orange, Junction box with fused branch, connection box 3-pole, junction box 3-pole, number of clampable wires per pin 4 x 1.5 - 6mm², clamping capacity per terminal point 1 x 1.5 - 6mm², fuse holder (20 x 5mm) max. 6.3 A
3 off cable glands M25 (9 - 16mm), wall plug set ø 6 mm
Catalogs
Electrical functional integrity
25 Pages
