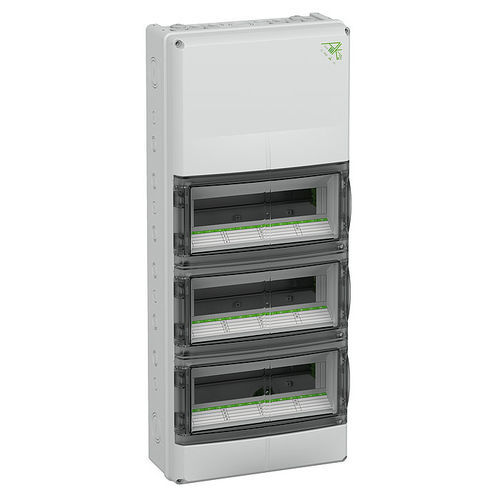

Wall-mount enclosure AK 42 Plus
rectangularpower distribution

Wall-mount enclosure - AK 42 Plus  - Spelsberg - rectangular / power distribution
Wall-mount enclosure - AK 42 Plus  - Spelsberg - rectangular / power distribution
Wall-mount enclosure - AK 42 Plus  - Spelsberg - rectangular / power distribution - image - 2
Wall-mount enclosure - AK 42 Plus  - Spelsberg - rectangular / power distribution - image - 3
Add to favorites
Compare this product


Characteristics

Construction
wall-mount
Configuration
rectangular
Application
power distribution
Width

315 mm
(12.4 in)

Height

155 mm
(6.1 in)

Depth

750 mm
(29.53 in)

Description

Small-scale distributors, with protection class IP65, 3 Rows, 42 available modules, with integrated ventilation elements for reducing the formation of condensation, Rated operational voltage: 400V AC, Rated insulation voltage: 1000V AC, 1500V DC, certified according to VDE (DIN EN 60670-1/-24 (VDE 0606-1/-24)), DLG (Ammonia resistance), UL-EU (EN 62208), UL-EU (EN 61439-1/-2), UL-EU (EN 61439-1/-3), UL-EU (EN 61439-1 & EN IEC 61439-7), metric knockouts on top and bottom for universal cable insertions with cable glands and/or double membrane seals, elastic entries double membrane seals M20 on top with extra connection space, with 35 mm standard rail, without PE/N terminal rail Double-membrane seals: 2x M16, 10x M20, 4x M25, 2x M32, 2x M40, sealing plugs, masking and labelling strips
