Wall-mounted junction box Abox XT 025-2,5²waterproofhalogen-freeweather-resistant
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mounted
- Protection level
- waterproof, halogen-free, weather-resistant, shockproof
- Material
- polycarbonate, molded resin
- Applications
- for marine applications
- Other characteristics
- with cable gland, with knockouts, outdoor, with elastic membranes, with liquid resin
- Length / diameter
82 mm
(3.2 in)- Width
82 mm
(3.23 in)- Depth
52 mm
(2.05 in)
Description

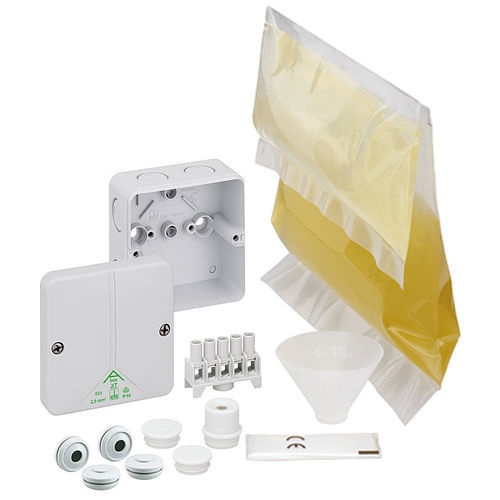

Junction Box, with protection class IP68, Nominal cross-section 2.5 mm², Ui=690V AC, certified according to VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100), Push-out membranes, M20, (1 Rear, 7 Side), Internal fastening points, with screw terminals for encapsulation, for assembly in flooded areas and in the ground without traffic loads,
grey, with screw terminal, 5-pole - 2.5 mm² (4 x 1.5² / 4 x 2.5²)
4 Double membrane seals IP66 M20 sealing area 7 - 12 mm, 2 sealing plugs M20, 1 attachment bush M20, 1 cast resin bag GHB1 with filling funnel
