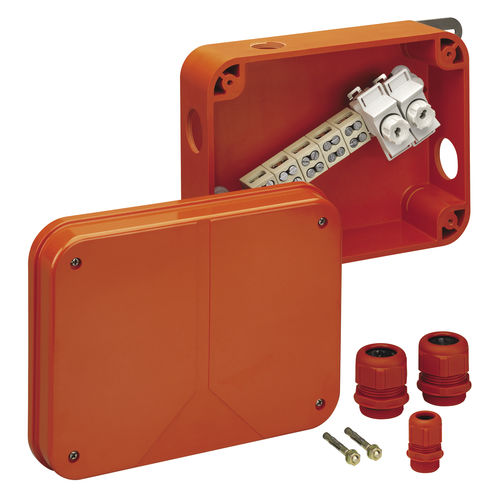

Wall-mounted junction box WKE 54
halogen-freefire-resistantIP66

Wall-mounted junction box - WKE 54 - Spelsberg - halogen-free / fire-resistant / IP66
Wall-mounted junction box - WKE 54 - Spelsberg - halogen-free / fire-resistant / IP66
Wall-mounted junction box - WKE 54 - Spelsberg - halogen-free / fire-resistant / IP66 - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
wall-mounted
Protection level
halogen-free, fire-resistant, IP66, IP67
Material
plastic

Description

Junction box for tunnel, with protection class IP66/IP67, Ui=690V AC, certified according to VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)), M32/M40, (3 Side), External fastening points, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermosetting plastic, terminals made of special high-temperature-resistant ceramic. orange, Connection box, 5-pole, 1.5 - 16 mm², junction box 5-pole 1.5 - 10 mm², number of clampable wires per pin: 20 x 1.5² / 16 x 2.5² / 12 x 4.0² / 8 x 6² / 4 x 10² / 4 x 16², 2 safety sockets D01 max. 16 A 2 off cable glands M40, sealing area 16 - 28 mm, 1 off cable gland M32, sealing area 11 - 21 mm
