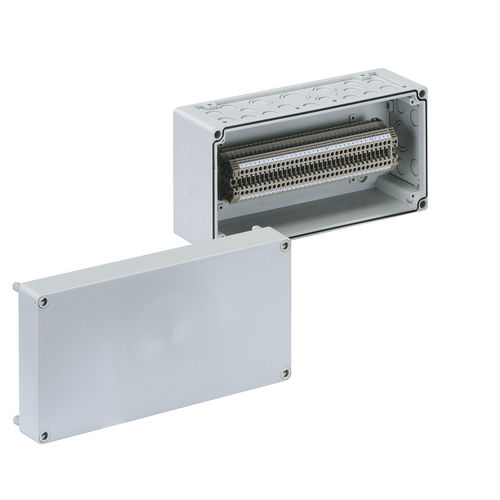

Wall-mount enclosure RKA 4/34-L
modularpolystyreneterminal

Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal - image - 2
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal - image - 3
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal - image - 4
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal - image - 5
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal - image - 6
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal - image - 7
Wall-mount enclosure - RKA 4/34-L - Spelsberg - modular / polystyrene / terminal - image - 8
Add to favorites
Compare this product


Characteristics

Construction
wall-mount
Configuration
modular
Material
polystyrene
Application
terminal
Protection level
impact-resistant, IP65, IP66, IP54
Other characteristics
screw cover
Width

300 mm
(11.8 in)

Height

132 mm
(5.2 in)

Depth

150 mm
(5.91 in)

Description

Terminal block enclosure, with protection class IP65, Nominal cross-section 4 mm², Ui=400V AC, Polystyrene, Internal fastening points, for standard indoor installations without terminals, with mounting rail NS35 10 Double-membrane seal IP66 M20 sealing area 7 - 12 mm, 2 Double-membrane seals IP66 M25 sealing area 9 - 16 mm, 2 Double-membrane seal M32 sealing area 14 - 21 mm, 1 Double-membrane seal IP66 M40 sealing area 19 - 28 mm
