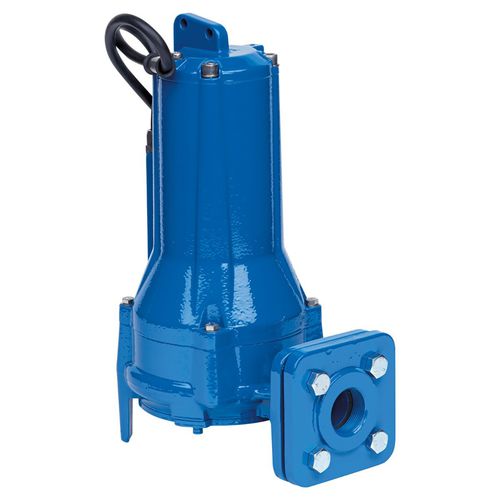

Centrifugal pump CUTTY seriesfor wastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- suction, macerator
- Material
- stainless steel, cast iron, ceramic
- Voltage
- 400 V, 230 V
- Protection level
- IP68
- Other characteristics
- suction, mechanical, double, open
- Flow
350 l/min, 400 l/min
(92.46022 us gal/min, 105.66882 us gal/min)- Head
15 m, 17 m, 27 m
(49'02" , 55'09" , 88'06" )- Power
1.1 kW, 1.5 kW, 1.85 kW
(1.5 hp, 2.04 hp, 2.52 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Length
206 mm
(8 in)- Width
300 mm, 305 mm
(11.81 in, 12.01 in)- Height
446 mm, 468 mm
(17.56 in, 18.43 in)- Weight
40.8 kg, 41.7 kg, 47.9 kg
(89.95 lb, 91.93 lb, 105.6 lb)
Description
The Cutty series comprehend electric pump with plunged impeller, this impeller is multi-pipe, open, with a cutting system in the suction. It is particularly suitable in presence of long, filamentous or fibrous fibres, of destroyable solids also of big dimensions and in biologic liquids or in civil waters.
LIMITS OF USE
- Maximum immersion depth 20 mt.
(with a cable of the appropriate length)
- Min. suction level 80 mm
- Continuous duty
ENGINE
- 2 pole induction motor in oil bath
- Insulation Class F
- Protection IP 68
- Thermic protection (only single-phase)
MATERIALS
- Motor body: Cast Iron
- Pump body: Cast Iron
- Impeller: Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Cutting: Stainless Steel AISI 304
- Double mechanical seal
in oil chamber: Ceramic/Graphite/NBR
Silicon/Silicon/NBR
