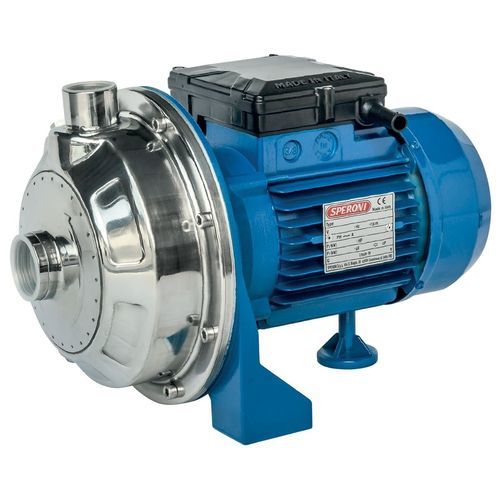

Centrifugal pump CMX 60/100 waterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- irrigation, distribution, lift
- Voltage
- 400 V, 230 V
- Protection level
- IP55
- Other characteristics
- suction, small, automatic
- Flow
100 l/min, 120 l/min, 160 l/min
(26.41721 us gal/min, 31.70065 us gal/min, 42.26753 us gal/min)- Head
18 m, 29 m, 29.5 m
(59'00" , 95'01" , 96'09" )- Power
0.37 kW, 0.75 kW, 1.1 kW
(0.5 hp, 1.02 hp, 1.5 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Length
216 mm
(9 in)- Width
333 mm, 360 mm
(13.11 in, 14.17 in)- Height
227 mm, 238 mm
(8.94 in, 9.37 in)- Weight
10 kg, 14 kg, 16 kg
(22.05 lb, 30.86 lb, 35.27 lb)
Description
Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.
LIMITS OF USE
according to EN 60335-2-41)
- Total suction lift up to 7 mt.
- Continuous duty
ENGINE
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protezione IP 44 (60)
- Protection IP 55 (100)
MATERIALS
- Pump body: Stainless Steel AISI 304
- Motor Support: Aluminium
- Impeller: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Silicon/Graphite/EPDM
