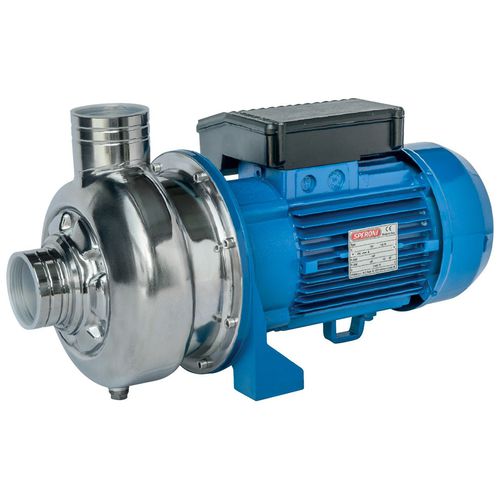

Water pump WXM-A electriccentrifugalmobile
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- washing, lift
- Material
- stainless steel, metal
- Voltage
- 400 V, 230 V
- Protection level
- IP55
- Other characteristics
- suction, mechanical, seal
- Flow
Max.: 1,400 l/min
(369.84087 us gal/min)Min.: 700 l/min
(184.92044 us gal/min)- Head
Max.: 18 m
(59'00" )Min.: 10.5 m
(34'05" )- Power
Max.: 3 kW
(4.08 hp)Min.: 1.1 kW
(1.5 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Length
193 mm
(8 in)- Width
382 mm, 426 mm
(15.04 in, 16.77 in)- Height
258 mm
(10.16 in)- Weight
Max.: 23 kg
(50.71 lb)Min.: 16.5 kg
(36.38 lb)
Description
It can be used to convey the residual suspended solids from food processing; it can be used to clean vegetables, meat or fish or to clean metal parts, bottles, tins, or glassware It can be used in circulating systems and it can be used to convey any type of dirty liquid and slightly corrosive liquids as well. It is suitable to be used as part of factory washing systems and industrial dishwashers.
LIMITS OF USE
- Total suction lift up to 3 mt.
- Continuous duty
ENGINE
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protezione IP 55
MATERIALS
- Pump body: Stainless Steel AISI 304
- Motor Support: Aluminium
- Impeller: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Silicon/Silicon/Viton
