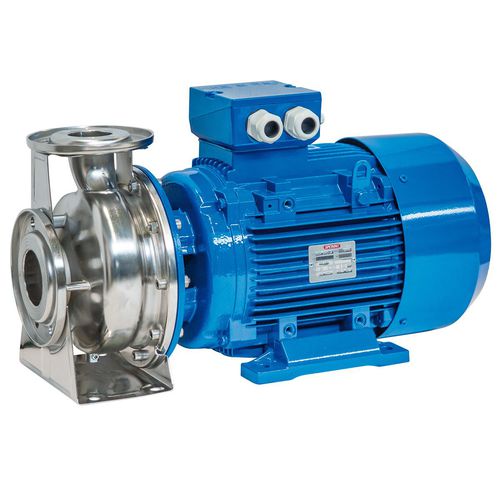

Centrifugal pump CX 65 serieswaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- transfer, irrigation, feed, service, lift, spray
- Material
- stainless steel, ceramic
- Protection level
- IP55
- Other characteristics
- suction, mechanical, flange, rotary, heating, seal
- Flow
2,200 l/min, 2,400 l/min
(581.17852 us gal/min, 634.01293 us gal/min)- Head
Max.: 52 m
(170'07" )Min.: 26.5 m
(86'11" )- Power
Max.: 18.5 kW
(25.15 hp)Min.: 7.5 kW
(10.2 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Length
Max.: 333 mm
(13 in)Min.: 283 mm
(11 in)- Width
Max.: 760 mm
(29.92 in)Min.: 570 mm
(22.44 in)- Height
Max.: 430 mm
(16.93 in)Min.: 350 mm
(13.78 in)- Weight
Max.: 129.8 kg
(286.16 lb)Min.: 63.7 kg
(140.43 lb)
Description
Centrifugal, monoblock and single-impeller electrical pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. These system can be installed in any position, provided the inlet opening faces upwards, and, thanks to their special design - which allows back pull out of the motor and the rotary parts of the pump and subsequent re-assembly without having to remove the pump body and the pipes connected to it - can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system, heating, conditioning and any other general service requiring transfer of clean liquids.
LIMITS OF USE
- Total suction lift up to 7 mt.
- Continuous duty
ENGINE
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
- Minimum Efficiency Index (BEP) MEI ≥ 0,4
MATERIALS
- Pump body: Stainless Steel AISI 304
- Pump flange: Stainless Steel AISI 304
- Impeller: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Catalogs
SPERONI WATER PUMPS
290 Pages
SPERONI WATER PUMPS 60 hz
161 Pages
