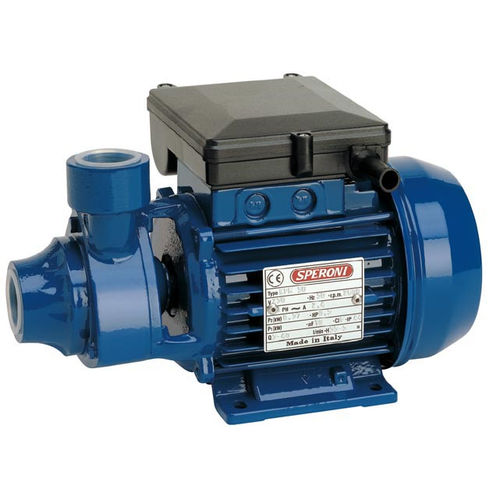

Impeller pump KPM serieswaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- distribution
- Material
- stainless steel, ceramic
- Voltage
- 230 V
- Other characteristics
- mechanical, small, automatic, seal
- Flow
35 l/min, 40 l/min, 50 l/min
(9.24602 us gal/min, 10.56688 us gal/min, 13.2086 us gal/min)- Head
38 m, 46 m, 55 m
(124'08" , 150'11" , 180'05" )- Power
0.37 kW, 0.52 kW, 0.6 kW
(0.5 hp, 0.71 hp, 0.82 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Length
120 mm, 135 mm
(5 in, 5 in)- Width
255 mm, 285 mm, 295 mm
(10.04 in, 11.22 in, 11.61 in)- Height
144 mm, 152 mm, 161 mm
(5.67 in, 5.98 in, 6.34 in)- Weight
6.1 kg, 7.7 kg, 9.2 kg
(13.45 lb, 16.98 lb, 20.28 lb)
Description
Volumetric water pumps able to offer high pressions in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water di stribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, or non-agressive liquids only, without sand or other solid impurities.
LIMITS OF USE
- Total suction lift up to 7 mt.
- Continuous duty
ENGINE
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 44
MATERIALS
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
- Mechanical seal (KPM 50-80): Ceramic/Silicon/NBR
- Mechanical seal (KPM 70): Graphite/Silicon/NBR
