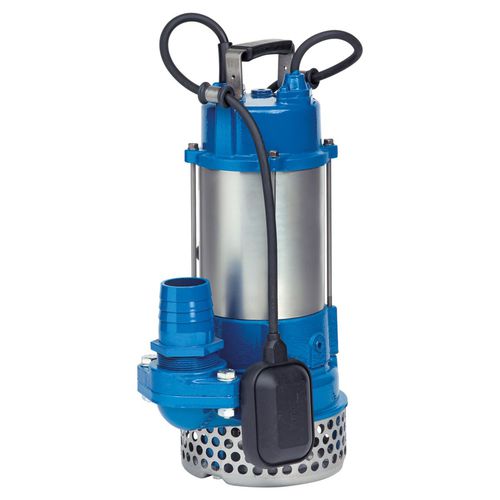

Clear water pump SDH serieselectricsubmersiblecentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- for clear water
- Operation
- electric
- Priming
- submersible
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- drain, suction
- Material
- stainless steel, cast iron, ceramic
- Voltage
- 230 V
- Protection level
- immersion
- Other characteristics
- suction, mechanical, small, double, open, seal
- Flow
200 l/min, 350 l/min
(52.83441 us gal/min, 92.46022 us gal/min)- Head
11.5 m, 15 m
(37'08" , 49'02" )- Power
0.4 kW, 0.75 kW
(0.54 hp, 1.02 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 35 °C
(95 °F)- Length
226 mm, 245 mm
(9 in, 10 in)- Width
161 mm, 173 mm
(6.34 in, 6.81 in)- Height
349 mm, 430 mm
(13.74 in, 16.93 in)- Weight
14.8 kg, 20.3 kg
(32.63 lb, 44.75 lb)
Description
Submersible drainage pumps with plunged open impeller with grid. Suitable for clean waters, even with small suspended solids, for drainage of flowing and collection rain waters.
LIMITS OF USE
- Maximum immersion depth 20 mt.
(with a cable of the appropriate length)
- Grain size inlet - SDH 500 Ø 7,5 mm
- Grain size inlet - SDH 1000 Ø 10 mm
- Min. suction level - SDH 500 88 mm
- Min. suction level - SDH 1000 100 mm
- Continuous duty
ENGINE
- Single-phase 230V-50Hz
- Insulation Class B
- Protection IP 68
- Thermic protection
MATERIALS
- Upper cover: Cast Iron
- Pump body: Cast Iron
- Impeller (SDH 500): Noryl
- Impeller (SDH 1000): Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Suction strainer: Stainless Steel AISI 304
- Mechanical seal (SDH 500): Ceramic/Graphite/NBR
- Double mechanical seal
in oil chamber (SDH 1000): Ceramic/Graphite/NBR
Ceramic/Graphite/NBR
