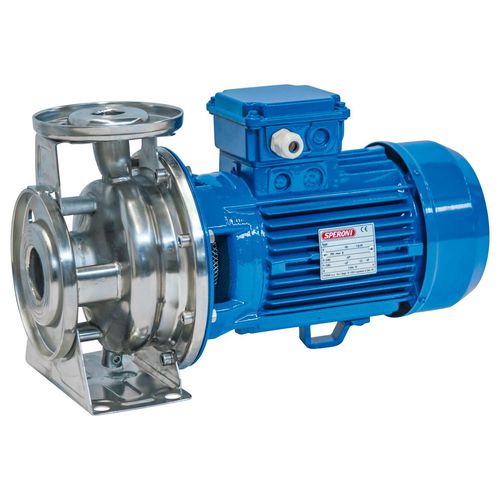

Centrifugal pump CX 32 serieswaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- transfer, irrigation, feed, service, lift, spray, trial
- Material
- stainless steel, ceramic
- Voltage
- 400 V, 230 V
- Other characteristics
- suction, single-stage, mechanical, flange, close-coupled, rotary, heating, seal
- Flow
400 l/min, 500 l/min, 600 l/min
(105.66882 us gal/min, 132.08603 us gal/min, 158.50323 us gal/min)- Head
Max.: 58.5 m
(191'11" )Min.: 26 m
(85'03" )- Power
Max.: 5.5 kW
(7.48 hp)Min.: 1.5 kW
(2.04 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Length
Max.: 297 mm
(12 in)Min.: 213 mm
(8 in)- Width
Max.: 540 mm
(21.26 in)Min.: 440 mm
(17.32 in)- Height
Max.: 350 mm
(13.78 in)Min.: 260 mm
(10.24 in)- Weight
Max.: 67.7 kg
(149.25 lb)Min.: 23.1 kg
(50.93 lb)
Description
Centrifugal, monoblock and single-impeller electrical pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. These system can be installed in any position, provided the inlet opening faces upwards, and, thanks to their special design - which allows back pull out of the motor and the rotary parts of the pump and subsequent re-assembly without having to remove the pump body and the pipes connected to it - can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system, heating, conditioning and any other general service requiring transfer of clean liquids.
LIMITS OF USE
- Total suction lift up to 7 mt.
- Continuous duty
ENGINE
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
- Minimum Efficiency Index (BEP) MEI ≥ 0,4
MATERIALS
- Pump body: Stainless Steel AISI 304
- Pump flange: Stainless Steel AISI 304
- Impeller: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
