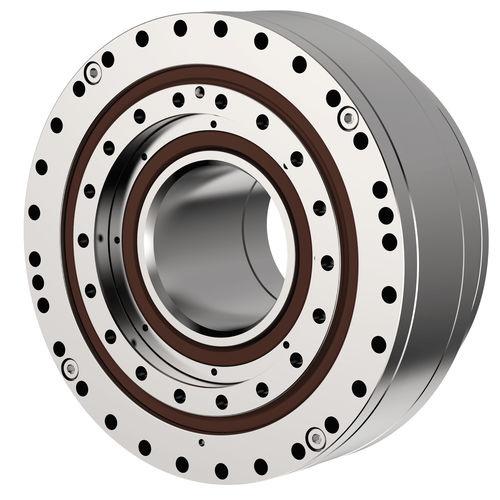

High-precision gear reducer TwinSpin G seriescycloidalcoaxial200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm
- Mounting
- shaft-mounted, flange-mounted
- Configuration
- compact, modular, flange, miniature
- Number of stages
- single-stage
- Performance
- high-precision, high-performance, low-noise, high-efficiency, high-torque, maintenance-free, high-rigidity, zero-backlash, high-capacity
- Applications
- for rack-and-pinion drives, for servo motors, for wheel and track drives, for pharmaceutical products, for marine applications, for robots, for automation, for printing machines, for machinery, machine, for valves, for medical devices, centrifuge, for valves, for AGV, for height adjustment, for shafts, antenna, for material handling equipment, drive, for milling applications, for doors, for actuators, winch, for lathes, for food industry machinery, for textiles, for gear wheels, for electrical drives, for welding machines, packaging machine, for robotics, industrial, for machine tools, for milling machines, for grinding machines, for automotive applications, for the food industry, for electric motors, for rotary tables, for motor coupling, for pulley drives, for telecommunications equipment, for injection molding machines, for harsh environments
- Other characteristics
- NEMA 23, ATEX, multi-turn, high-temperature, reversible, IP65, IP67, high-quality, vertical, single reduction, NEMA 17, NEMA 34, custom, mechanical transmission, low-speed
- Rotational speed
2,000 rpm
(12,566.37 rad.min-1)
Description
New generation of TwinSpin high precision reduction gears with a new design of the main bearing and improved performance for the most demanding applications. G series brings increase in torque to weight ration in comparison with the previous generation. Innovative design of main bearing reaches unprecedented tilting stiffness, high precision of the output bearing and modularity of design which allows customised solutions. Futher improvements inroduced with G series brings further friction reduction in transmissinon mechanism, lower hysteresys and low settings of lost Motion, especially in small size. Finally with G series new sizes of reducers are introduced in standard and hollowshaft design to broaden portfolio nad application range of TwinSpin reducers. It comes in two variants, with sealed output only or as a fully sealed gear for direct connection with
a motor.
In this new generation, we have concentrated the results of several years of the development of the reduction gears design, together with the implementation of the latest manufacturing processes and technologies.
