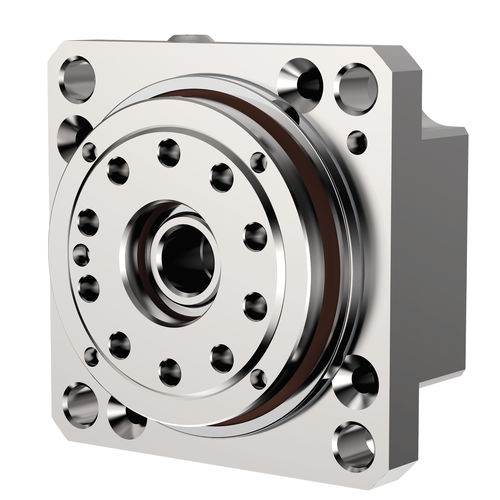

High-precision gear reducer TwinSpin M seriescycloidalcoaxial10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Torque
- 10 - 20 Nm
- Mounting
- shaft-mounted, flange-mounted
- Configuration
- compact, modular, flange, miniature
- Number of stages
- single-stage
- Performance
- high-precision, high-performance, low-noise, high-efficiency, high-torque, maintenance-free, high-rigidity, zero-backlash, high-capacity
- Applications
- for wheel and track drives, for servo motors, for robots, for rack-and-pinion drives, for pharmaceutical products, for valves, for printing machines, for AGV, for automation, for medical devices, antenna, centrifuge, machine, for material handling equipment, for doors, drive, for textiles, for machinery, for marine applications, for food industry machinery, for actuators, for gear wheels, for lathes, winch, for welding machines, packaging machine, for electrical drives, for shafts, for valves, for height adjustment, for milling applications, for robotics, industrial, for machine tools, for milling machines, for grinding machines, for automotive applications, for the food industry, for electric motors, for rotary tables, for motor coupling, for pulley drives, for telecommunications equipment, for injection molding machines, for harsh environments
- Other characteristics
- NEMA 23, ATEX, NEMA 34, IP67, IP65, multi-turn, reversible, high-quality, vertical, custom, single reduction, high-temperature, NEMA 17, mechanical transmission, low-speed
- Rotational speed
2,000 rpm
(12,566.37 rad.min-1)
Description
The M series represents TwinSpin high precision reduction gears of mini sizes. The first representative of the series is the size TS 50, and in the near future we plan to introduce even smaller TwinSpin gears that will widen the M series. This design of the reduction gears allows the mounting of the load directly on the output flange or case without a need of additional bearings.
The M series has retained all the qualities of the larger SPINEA gears. We can proudly say that, in their category, they represent the best gears on the market.
The M series is filled with grease for lifetime. The sealing of the M series reduction gears is secured by sealed (2RS) ball bearings, which are used as output bearings of the reduction gear, and they are also used for the housing of the input shaft of the reduction gear (slight leakage of the lubricant is allowed). Upon the customer’s request, SPINEA is able to supply a completely sealed reduction gear.
