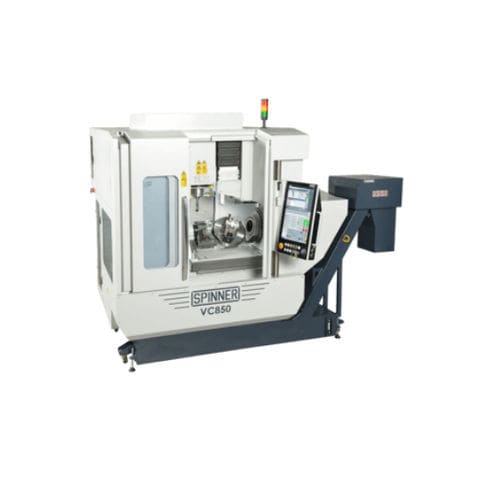

5-axis CNC machining center VC seriesverticalwith fixed tableBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- with fixed table
- Spindle mount
- BT 40, BT 50, SK40, HSK-63, SK50
- Number of tool stations
- 32 tools, 48 tools
- Applications
- for large workpieces, heavy-duty
- Other characteristics
- high-speed, compact, high-performance
- X travel
815 mm, 1,650 mm
(32.09 in, 64.96 in)- Y travel
510 mm, 820 mm
(20.08 in, 32.28 in)- Z travel
510 mm, 820 mm
(20.08 in, 32.28 in)- Rotational speed
12,000 rpm, 14,000 rpm, 15,000 rpm, 18,000 rpm
(75,398 rad.min-1, 87,965 rad.min-1, 94,248 rad.min-1, 113,097 rad.min-1)- Power
Max.: 68 kW
(92.45 hp)Min.: 10.6 kW
(14.41 hp)- Weight
5,000 kg, 16,000 kg
(11,023.11 lb, 35,273.96 lb)- Overall length
2,493 mm, 3,550 mm
(98.1 in, 139.8 in)- Overall width
1,800 mm, 2,750 mm
(70.9 in, 108.3 in)- Overall height
2,420 mm, 3,200 mm
(95.3 in, 126 in)
Description
Our VC series is a 5-axis Vertical Machining Center with a very compact footprint
with integrated rotary-/swivel table
tilting axis in spindle
for high level 5-face and 5-axis machining applications
compact workpieces up to about 350mm on rotary table
high number of tools
high spindle speed up to 18.000 rpm
Most modern high-level controls and drives
with patented guideway covers that lead into minimum floor-space
which is usually sold for small-medium 5-axis applications and very limited floor space capacity
